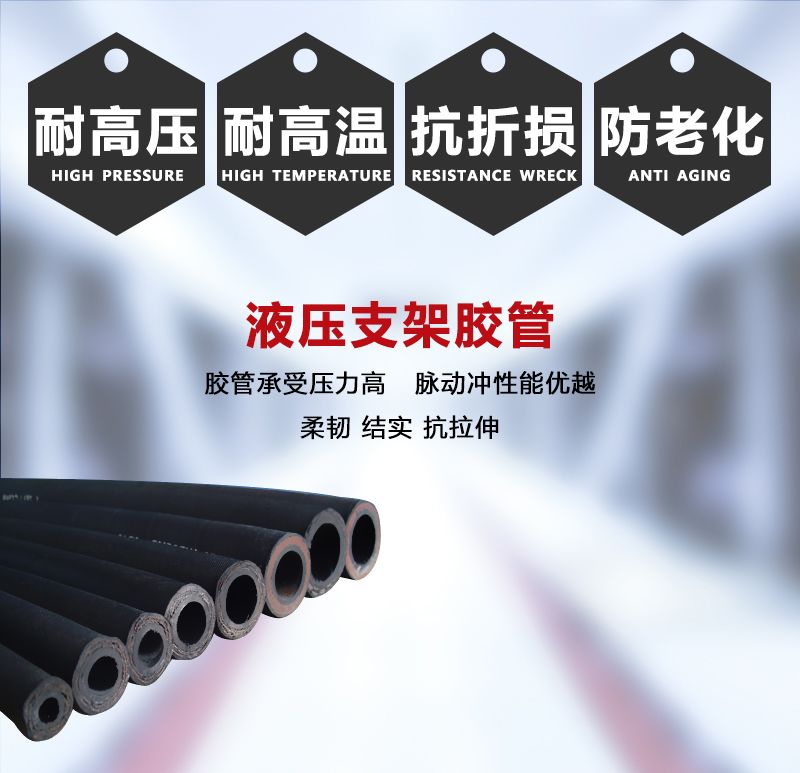

液压钢丝管

  • 用途:液压支架胶管主要用于煤矿井下液压支架设备具有一定压力、温度的石油基液体、水基液体等,介质温度-40℃~+100℃特点:1.胶层选用特种合成橡胶配合制成,具有优良的耐油、耐热、耐
  • 胶管厂家电话:024-2450-5386
  • 产品详情

钢丝编织液压支架胶管 Wire braid hydraulic rubber hose(一型)

内径Inside
Diameter(mm)

钢丝层内径printooment
Diamenter mm

外径Otside
Diameter(mm)
工作压力
working press
(MPa)
试验压力
Allowable working Pressure Mpa
爆破压力Burst pressure Mpa 较小弯曲半径Min.Bent profuse mm

参考重量Weight
kg/m

Mm Inch max max max max min
4.8 3/16 11.1±0.3 16.2±0.3 35 56 140 89 0.32
6.4 1/4 12.7±0.3 17.8±0.3 35 56 140 102 0.36
7.9 5/16 14.3±0.3 19.3±0.3 32 50 128 114 0.45
9.5 3/8 16.7±0.3 21.7±0.3 28 45 112 127 0.54
12.7 1/2 19.8±0.3 24.9±0.3 25 40 100 178 0.68
15.9 5/8 23.0±0.3 28.1±0.3 20 32 80 203 0.80
19.0 3/4 27.0±0.3 32.0±0.3 16 26 64 241 0.94
22.2 7/8 30.2±0.3 35.2±0.3 14 22 56 279 1.20
25.4 1 34.9±0.3 40.4±0.3 14 22 56 305 1.35
31.8 1.1/4 44.4±0.3 51.9±0.3 11 18 44 419 2.15
38.1 1.1/2 50.8±0.3 58.2±0.3 9 14 36 508 2.65
50.8 2 63.5±0.3 70.9±0.3 8 12 32 635 3.42

钢丝编织液压支架胶管 Wire braid hydraulic rubber hose(二型)

内径Inside
Diameter(mm)

钢丝层内径printooment
Diamenter mm

外径Otside
Diameter(mm)
工作压力
working press
(MPa)
试验压力
proof working Pressure Mpa
爆破压力Burst pressure Mpa 较小弯曲半径Min.Bent profuse mm

参考重量Weight
kg/m

Mm Inch max max max max min
4.8 3/16 14.0±0.3 18.0±0.3 65 130 260 89 0.49
6.4 1/4 15.0±0.3 19.0±0.3 60 120 240 102 0.53
7.9 5/16 17.5±0.3 22.0±0.3 55 110 220 114 0.64
9.5 3/8 19.0±0.3 24.0±0.3 50 100 200 127 0.75
12.7 1/2 23.0±0.3 29.0±0.3 35 70 140 178 0.93
15.9 5/8 260±0.3 31.0±0.3 26 52 104 203 1.09
19.0 3/4 29.0±0.3 34.0±0.3 23 46 92 241 1.31
22.2 7/8 32.0±0.3 37.0±0.3 20 40 80 279 1.75
25.4 1 35.6±0.3 41.0±0.3 16 32 64 305 1.78
31.8 1.1/4 43.0±0.3 58.0±0.3 14 28 56 419 3.01
38.1 1.1/2 48.0±0.3 53.5±0.3 12 24 48 508 3.68
50.8 2 52.0±0.3 67.5±0.3 9 18 36 635 4.70

钢丝缠绕液压支架胶管Wire spiral hydraulic rubber hose

内径Inside
Diameter(mm)

钢丝层内径printooment
Diamenter mm

外径Otside
Diameter(mm)
工作压力
working press
(MPa)
试验压力
Allowable working Pressure Mpa
爆破压力Burst pressure Mpa 较小弯曲半径Min.Bent profuse mm

参考重量Weight
kg/m

Mm Inch min max min max max max min
12.7 1/2 19.4 21.0 23.8 25.4 41.5 58 166 178 0.83
19.0 3/4 26.6 28.2 30.6 32.2 35 50 140 241 1.30
25.4 1 34.5 36.1 38.5 40.9 28 40 112 305 1.70
31.8 1.1/4 43.3 45.6 49.2 52.4 21 30 84 419 3.08
38.1 1.1/2 51.4 53.4 55.6 58.7 18.5 26 74.0 560 3.40
50.8 2 64.3 68.2 69.9 73.0 16.5 24 66.0 660 4.35
